DH43H-5MP-W PTZ CAMERA
5X Zoom 1080P PTZ IP Camera White

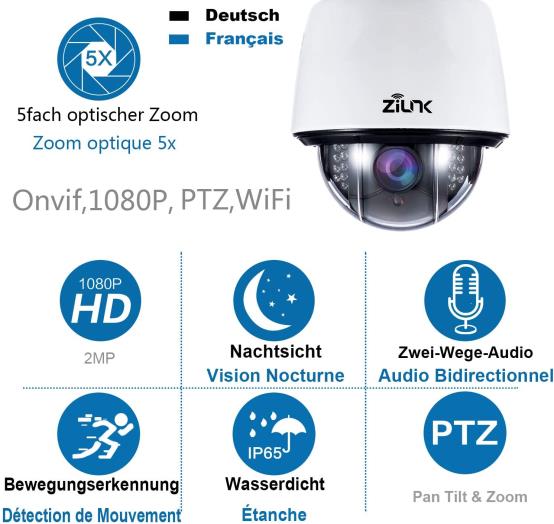

5x auto focus zoom lens provide detailed view
Patent designed
HD Pan/Tilt/Zoom wireless dome IP camera
H.264/H.265 video compression
Day/Night surveillance, IR LEDs On/Off auto switch
With 22pcs IR-LEDs, night vision range up to 30m
Motion detection alarm via E-mail, upload alarm snapshot to FTP
Compatible with free PC central management software(Device Clients)
Compatible with free iOS and Android APP
Supports IEEE 802.11b/g/n wireless connection
Supports WEP, WPA and WPA2 encryption
P2P feature for easy remote access
Model: |
DH43H |
|||
Image Sensor |
Image Sensor |
Color CMOS WXGA(megapixel) HD sensor |
||
Chipset Solution |
T31N+SC200AI |
|||
Display Resolution |
1920p(1920*2560),800*600 |
|||
Mini. Illumination |
0.01Lux |
|||
Lens |
Lens Type |
Glass Lens |
||
Focal Length
|
2.7-13.5mm 5X Auto Focus Zoom |
|||
Aperture |
F1.4 |
|||
Angle of view |
92° ~ 28° |
|||
Video |
Image Compression |
H.265, H.264 High Profile ,H.264 Main Profile 及H.264 Baseline |
||
Image Frame Rate |
1080P 20fps(50HZ), 20fps(60HZ) |
|||
Stream |
Double Stream |
|||
Image Adjustment |
The brightness, contrast, saturation, chroma are adjustable |
|||
Flip Mirror Images |
Reversal and mirror |
|||
Night visibility |
22pcs IR-LEDs, night vision range up to 30m |
|||
IR-CUT |
Dual IR-CUT filter (Original) |
|||
Infrared mode |
Automatic or manual |
|||
Light Frequency |
50Hz, 60Hz |
|||
PTZ |
Pan/Tilt Angle |

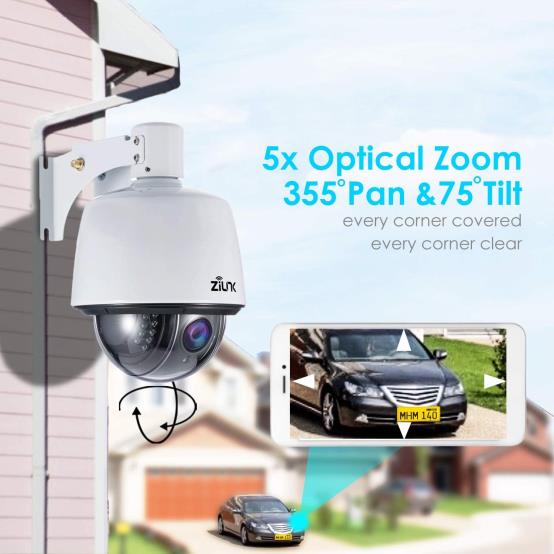

Horizontal:355° & Vertical: 75° |
||
3D Preset |
8 presets, include Horizontal & Vertical Position and Focal length |
|||
Preset Cruise |
1-8 preset positions cruise |
|||
Border Scan |
Set any position as left or right border, scan between the borders |
|||
Horizontal Scan |
355° horizontal scan |
|||
Guard position |
Support, default is preset position 1 |
|||
Alarm preset |
Support |
|||
ONVIF |
ONVIF |
Support ONVIF 2.4 |
||
Network |
Ethernet |
10/100Mbps RJ-45 port |
||
Protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP |
|||
Wireless Standard |
IEEE 802.11b/g/n |
|||
Data Rate |
IEEE802.11b: 11Mbps(Max.) |
|||
Wireless Security |
WEP, WPA, WPA2 |
|||
System |
By PC |
Windows XP/7/8/10, Vista, Mac OS |
||
By Phone |
Android, iOS |
|||
Browser |
Microsoft IE7 and above version or compatible browser; |
|||
Device Clients |
Up to 64-channel,centralized monitor, remote record and playback |
|||
Physical |
Dimension |
162(L)*Φ131(W)*191(H) mm |
||
Net/Gross Weight |
1200g/1600g |
|||
Color Box |
235(L) x 165(W) x 215(H) mm |
|||
Power |
Power Supply |
DC 12V/1A |
||
Power Consumption |
8 ~12 Watts (Max.) |
|||
Other Feature |
Protection level |

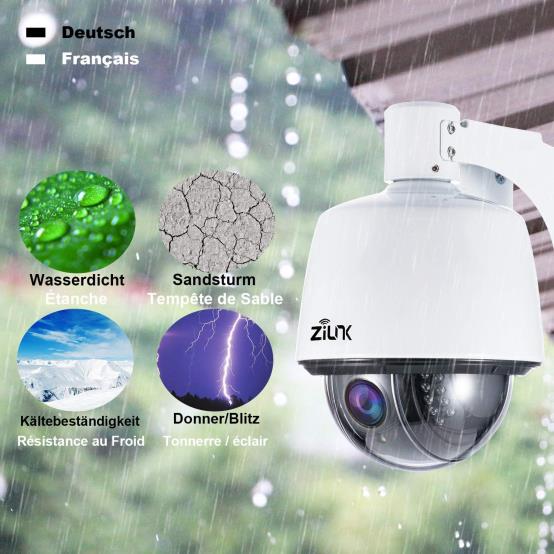

IP65 |
||
Shell |
Metal shell |
|||
User Accounts |
administrator |
|||
UID Technology |
UID scan technology applied, easy to operate, and highly confidential. |
|||
Reset |
Reset button is available |
|||
Alarm |
Motion detection alarm |
|||
Environment |
Operate Temp. |
0° ~ 50°C (32°F ~ 131°F) |
||
Operating Humidity |
10% ~ 95% non-condensing |
|||
Storage Temp. |
0° ~ 50°C (32°F ~ 131°F) |
|||
Storage Humidity |
10% ~ 95% non-condensing |
|||
Certification |
CE, FCC, RoHS |
|||
Warranty |
Limited 1-year warranty |
|||
Operating temperature |
0° ~ 50°C (32°F ~ 131°F) |
Package
-
BrandZILNK
-
Connectivity technologyWired, Wireless
-
Recommended uses for productMotion Detection, Night Vision
-
Connectivity protocolONVIF, WLAN
